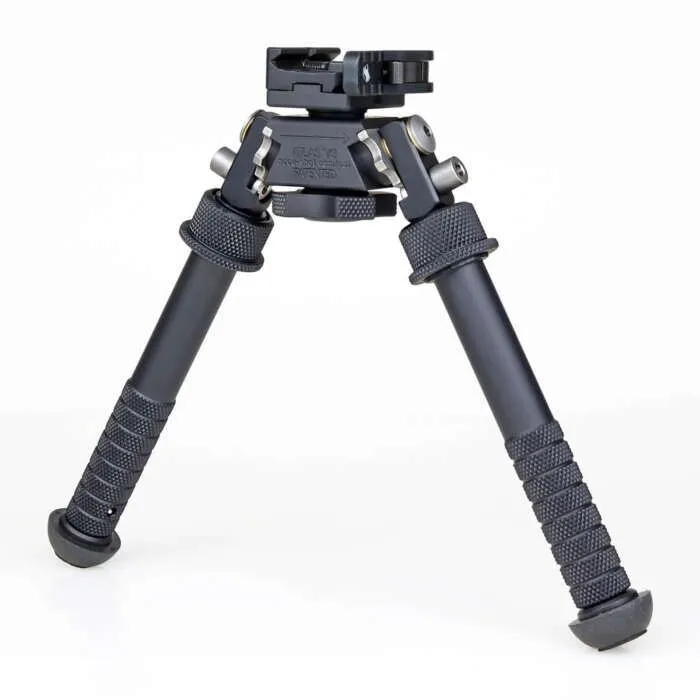

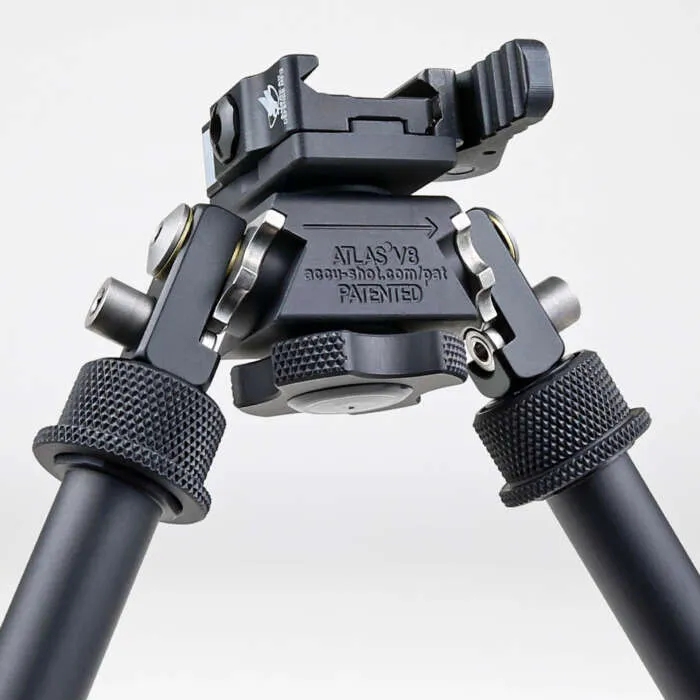

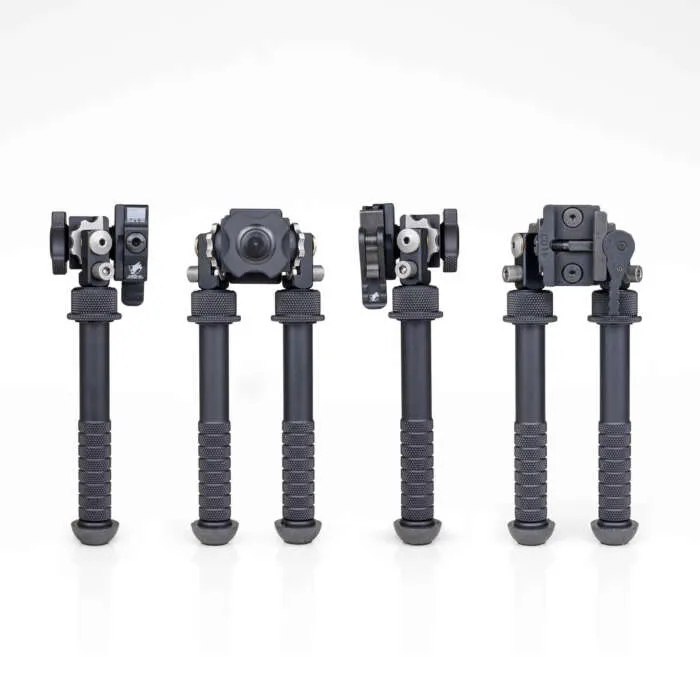

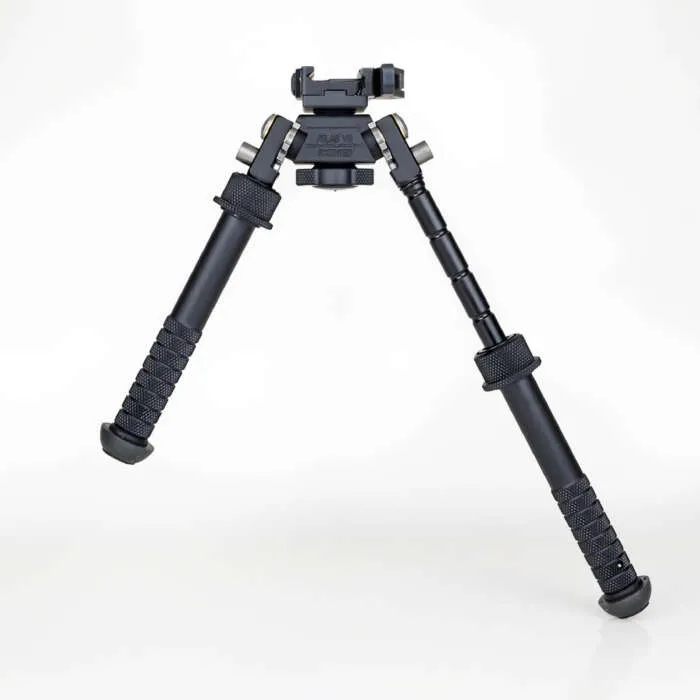

B&T Technologies V8 Atlas 4.75"-9" Bipod with American Defence ADM-170-S Lever
The B&T V8 Atlas Bipod with ADM-170-S Lever is a premium, quick-detach support system designed for 1913 Picatinny rails. Made from 6061-T6 aluminium with Mil-Spec Type III anodising, it features 30° preloaded pan and cant, five independent leg positions, and a height range of 5.2" to 9.6". The quick-adjust legs and smooth UHMW tracking ensure fast deployment and stability on any terrain. Weighing just 12.7 oz, it's lightweight, durable, and optimised for precision shooting.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
#911
#908
#912
#909
#882
The B&T Industries V8 Atlas Bipod with ADM-170-S Lever sets the standard for precision, durability, and versatility in rifle support systems. Designed to mount directly to any 1913-style Picatinny rail, this model features the American Defence ADM-170-S quick-detach lever, offering fast, rock-solid attachment and detachment for the discerning shooter.
Crafted from 6061-T6 aluminium with Mil-Spec Type III hard coat anodising, and incorporating heat-treated stainless steel components, this bipod is built to perform under demanding conditions. With a height range of 5.2" to 9.6" and a footprint spread of 8" to 11", it offers adaptable stability across varied shooting environments. At the 90° position, the bipod sits at 6.8" high, delivering a low-profile, stable shooting platform.
The V8 features five independent leg positions, 0°, 45°, 90°, 135°, and 180°, which allow for rapid adjustment and precise positioning on uneven terrain. The non-orientated leg design enables intuitive use with either hand, and the outer legs slide over inner legs to lock into place in ¾” increments. Preloaded pan and cant, both with a 30° range of motion, offer fluid, controlled tracking, with tension adjustable via a knurled knob for fine-tuned accuracy.
Weighing just 12.7 ounces, the V8 remains lightweight without sacrificing strength. It includes durable rubber feet as standard, with optional interchangeable feet, including ski, cleat, and 3" leg extensions, available to adapt to various surfaces and shooting styles. Designed with UHMW components for smooth tracking and fore/aft limiting bosses to prevent over-extension, the V8 is as refined as it is robust.
- Height Range 5.2" – 9.6" (6.8" at 90°)
- Footprint Spread at 90° 8" – 11"
- Weight 12.7 oz (approx.)
- Leg Positions 5 (0°, 45°, 90°, 135°, 180°)
- Pan Range ±15° (30° total), preloaded with adjustable tension
- Cant Range ±15° (30° total), preloaded with adjustable tension
- Mounting Option Quick Detach Lever (ADM-170-S included)
- Position Button Diameter 0.36"
- Non-Rotating Legs No
- Optional Feet Yes (Ski, Cleat, 3" Extensions available)
- Box Dimensions 7.09" x 2.9" x 2.08"
- Apex Height 0.76"
- Fore/Aft Limiting Bosses Yes
- Material 6061-T6 Aluminium (inner legs), Mil-Spec Type III anodised finish
-
Mounts directly to 1913-style Picatinny rails using the included ADM-170-S quick-detach lever
-
Made from high-strength 6061-T6 aluminium with Mil-Spec Type III hard coat anodising
-
Incorporates heat-treated stainless steel components for increased durability
-
Lightweight design for easy transport and minimal added weight to your rifle
-
Offers smooth pan and cant motion with adjustable tension via knurled knob
-
Five independent leg positions (0°, 45°, 90°, 135°, and 180°) for maximum versatility
-
Legs can be deployed or adjusted using either hand, with non-orientated operation
-
Outer legs slide over inner legs, locking securely into position with tactile feedback
-
Rubber feet provide a stable grip on most surfaces, with optional interchangeable feet available
-
Supports additional accessories such as 3” leg extensions, ski feet, and cleat feet
-
Legs allow for loading in the 45° and 90° positions to enhance stability when firing
-
UHMW (Ultra-High Molecular Weight) components enable smooth, consistent tracking
-
Built-in fore/aft limiting bosses prevent over-extension and maintain structural integrity
-
Professional-grade finish in matte black for a sleek, tactical appearance
-
Compatible with optional mounting systems for Accuracy International and Sako rifles
- B&T Technologies V8 Atlas 4.75"-9" Bipod with American Defence ADM-170-S Lever
