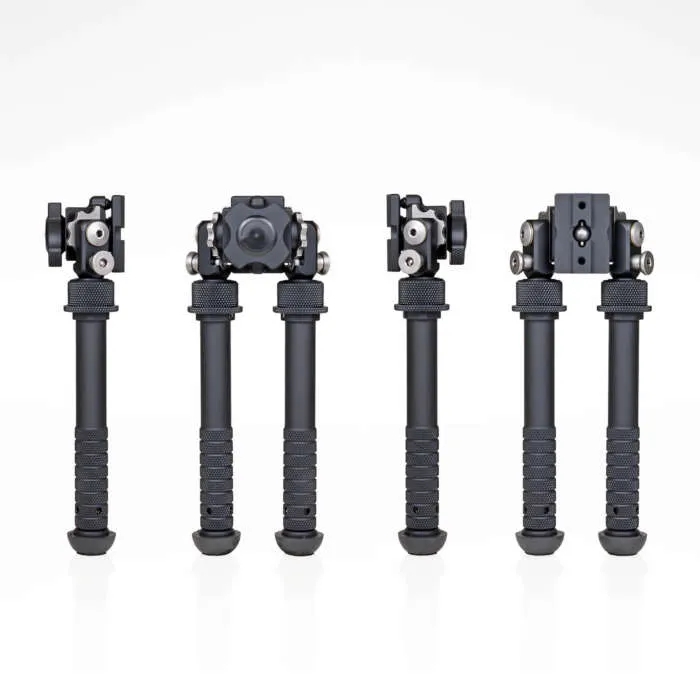

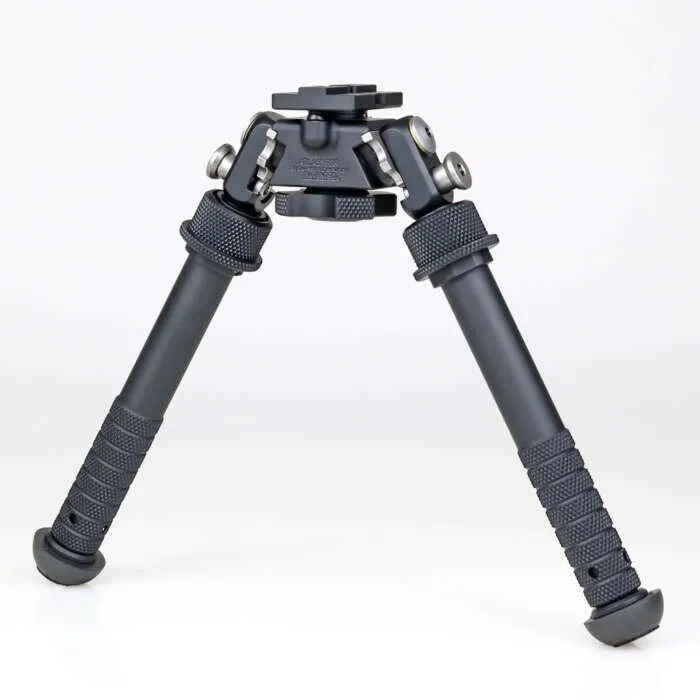

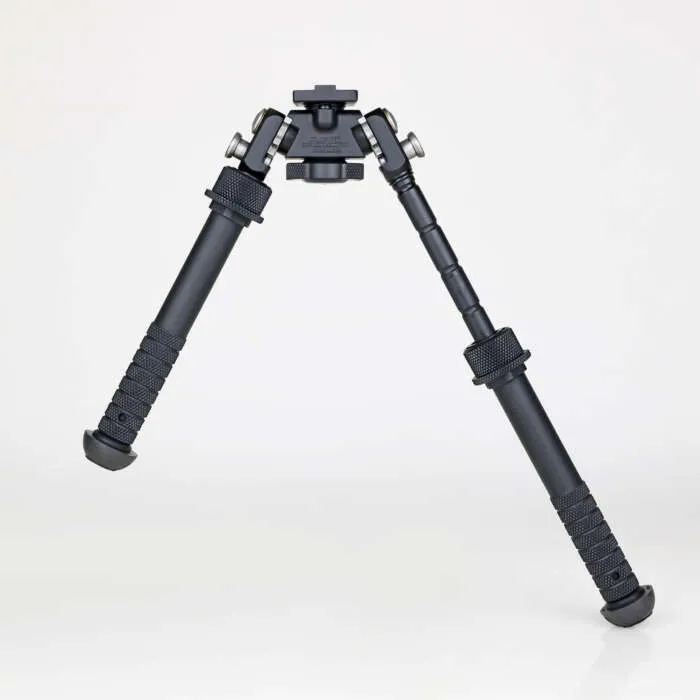

B&T Technologies PSR Atlas 5"-9.4" Bipod Without Clamp
The B&T Technologies PSR Atlas 5"–9.4" Bipod Without Clamp is a lightweight, military-grade support system built from 6061-T6 and 7075-T6 aluminium with stainless steel components. It offers five leg positions, non-rotating reinforced legs, and adjustable pan and cant (30° each) for superior control. Designed for precision shooting, it mounts via a 17S-style interface or directly to the BT19 or BT70 adapters.
#873
#870
#874
#871
#875
The B&T Technologies PSR Atlas 5"–9.4" Bipod Without Clamp (BT46-NC) is a premium-grade support system designed specifically for precision shooters who demand maximum stability and adjustability. Developed for the SOCOM Precision Sniper Rifle (PSR) Weapons System, this bipod represents the cutting edge in tactical support equipment, combining robust engineering with field-proven functionality.
Crafted from 6061-T6 aluminium with reinforced inner legs made from 7075-T6 aluminium, the PSR Atlas offers exceptional strength while remaining lightweight at just 11.42 ounces. All metal components are Mil-Spec Type III hard coat anodised and supported by heat-treated stainless steel, ensuring long-term durability in even the harshest environments.
The BT46-NC is a “No Clamp” model, featuring a two-hole mounting pattern (1.100" apart with 10/32 threads) and requires a compatible 17S size mount, such as the ADM-170-S, ARMS 17S, LT271 or a matching ARCA dovetail system. It can also be directly mounted to the BT19 AI Spigot or BT70 M-LOK® Adapter, providing flexibility for various rifle platforms.
Functionality is at the core of this bipod. It features five independently adjustable leg positions (0°, 45°, 90°, 135°, 180°) and non-rotating legs for quick deployment and rock-solid lock-up. The height adjusts from 5" to 9.4", with a footprint spread of 8"–11", making it suitable for multiple shooting positions and terrains. The preloaded pan and cant (30° each) provide fluid motion, while a knurled tension knob allows for precise adjustment to suit individual shooting styles.
Additional enhancements include soft rubber feet for stable contact across surfaces, the option to fit 3" leg extensions, and interchangeable feet (Ski or Raider Cleat) that can be swapped quickly in the field. Designed with UHMW components for smooth tracking, this bipod also integrates fore and aft pivot limiting bosses, contributing to its unmatched stability under recoil.
- Weight 11.42 oz (approx.)
- Height Range 5.0" – 9.4"
- Height at 90° Position 6.1"
- Footprint Spread (at 90°) 8" – 11"
- Total Leg Positions 5 (0°, 45°, 90°, 135°, 180°)
- Position Button Diameter 0.5"
- 45° Leg Position Yes
- Non-Rotating Legs Yes
- Inner Leg Material 7075-T6 Aluminium
- Pan Range ±15° (30° total), preloaded
- Cant Range ±15° (30° total), preloaded
- Adjustable Pan/Cant Tension Yes (via knurled knob)
- Fore/Aft Limiting Bosses Yes
- Optional Feet Compatible Yes (Ski Feet, Raider Cleat Feet, Leg Extensions)
- Mounting Options (not included) BT19 AI Spigot, BT70 M-LOK® Adapter, ADM-170-S, ARMS 17S, LT271, ARCA dovetail with 17S pattern
- Apex Height 0.92"
- Finish Mil-Spec Type III hard coat anodised (black only)
-
No Clamp design, allowing flexible mounting via any compatible 17S-style lever mount or direct attachment to BT19 AI Spigot or BT70 M-LOK® Adapter
-
Developed for SOCOM PSR (Precision Sniper Rifle) Weapons System, meeting military-grade standards
-
Five independently adjustable leg positions (0°, 45°, 90°, 135°, 180°) for versatile shooting angles
-
Non-rotating legs ensure stability and prevent twisting under load
-
Smooth tracking movement, enabled by internal UHMW components
-
Preloaded pan and cant functionality allows fluid aiming adjustments without shifting the rifle position
-
Knurled tension knob for easy adjustment of pan and cant resistance
-
Fore and aft limiting bosses to control movement and improve precision
-
Soft rubber feet suitable for most surfaces, with optional interchangeable feet (Ski, Raider Cleat) for specialised environments
-
Compatible with optional 3" leg extensions to increase overall height range
-
Independent leg adjustment from either side, with detents every ¾" for rapid deployment
-
Durable black anodised finish for a sleek, corrosion-resistant appearance
-
Designed for ambidextrous operation, with no orientation bias in leg positioning or adjustment
- B&T Technologies PSR Atlas 5"-9.4" Bipod Without Clamp
