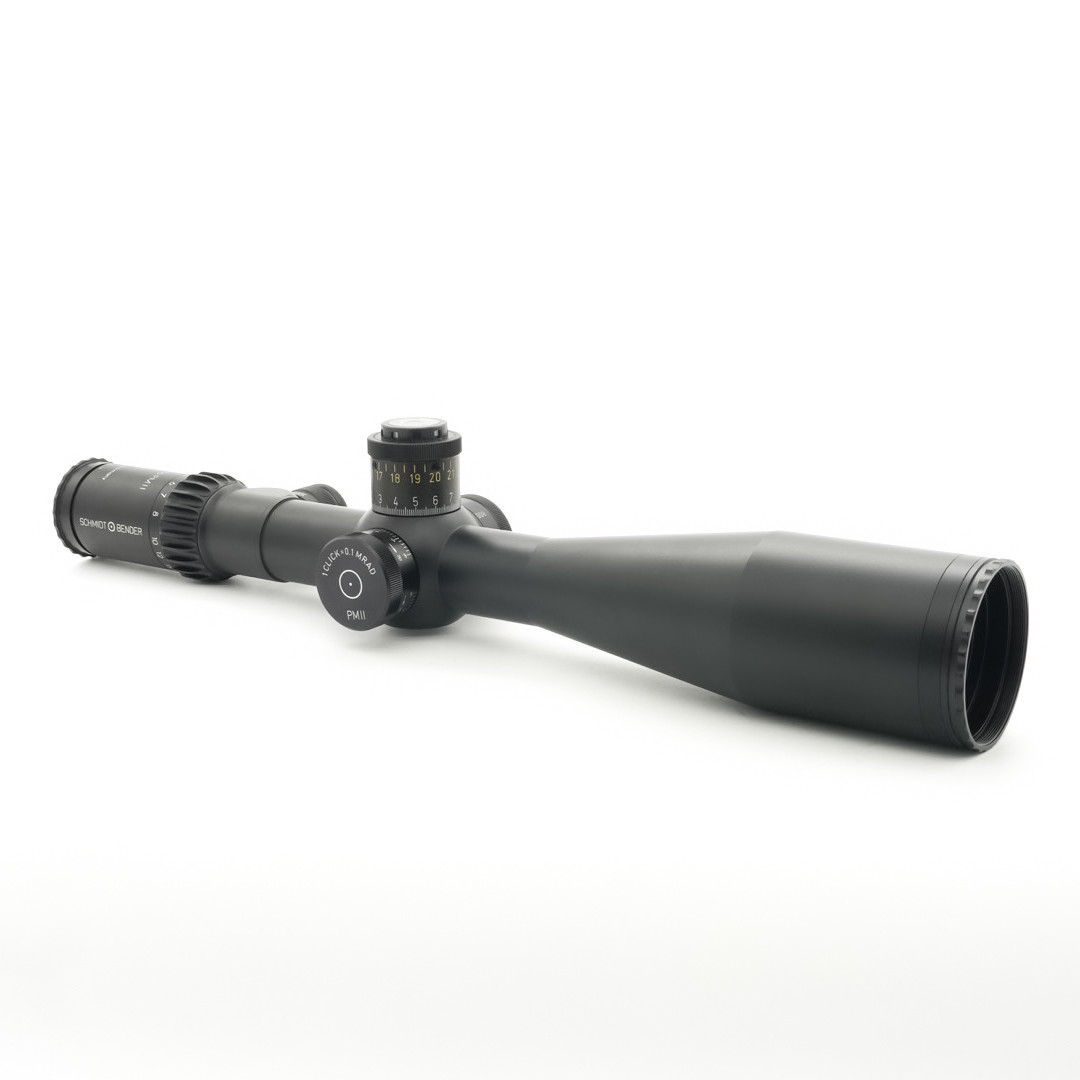

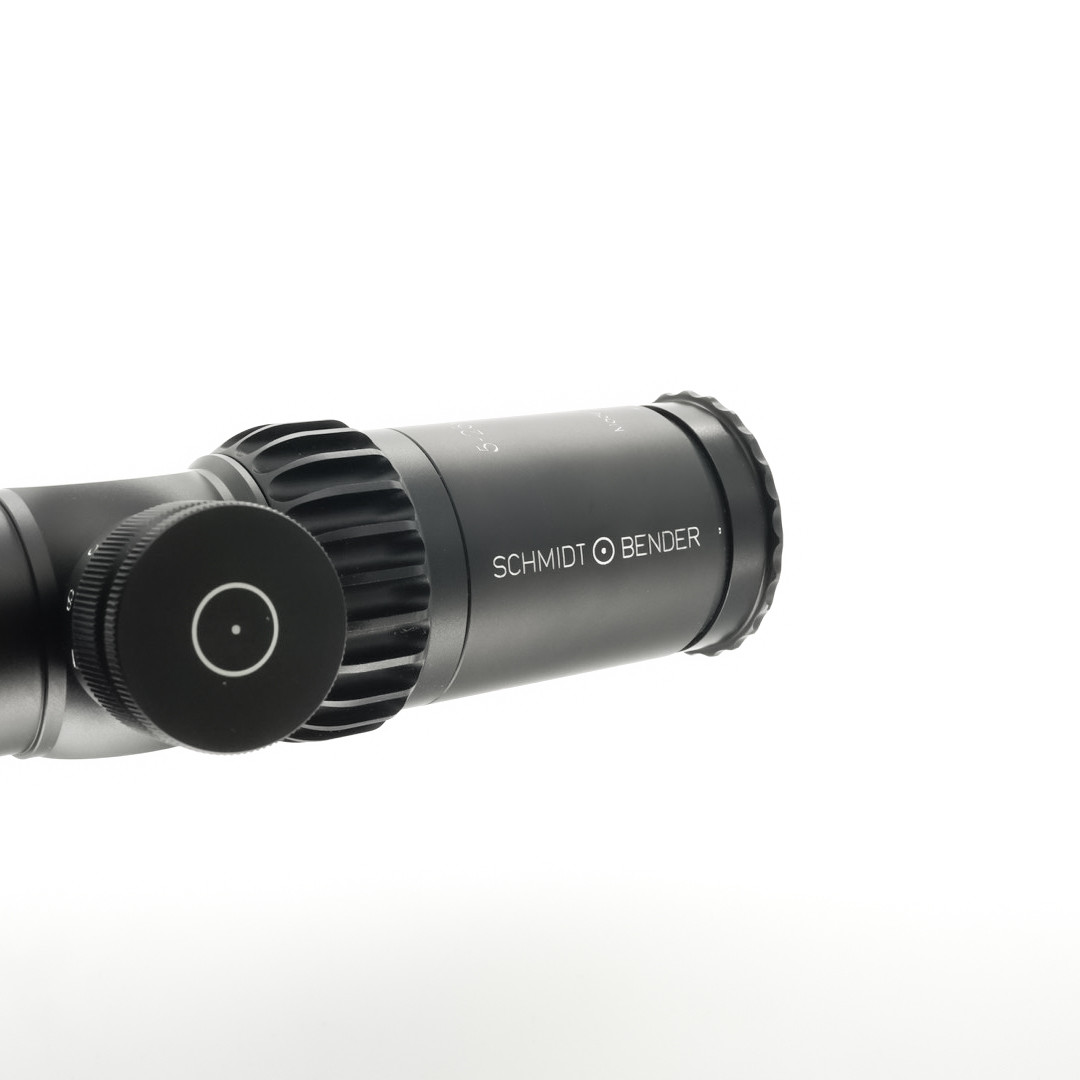

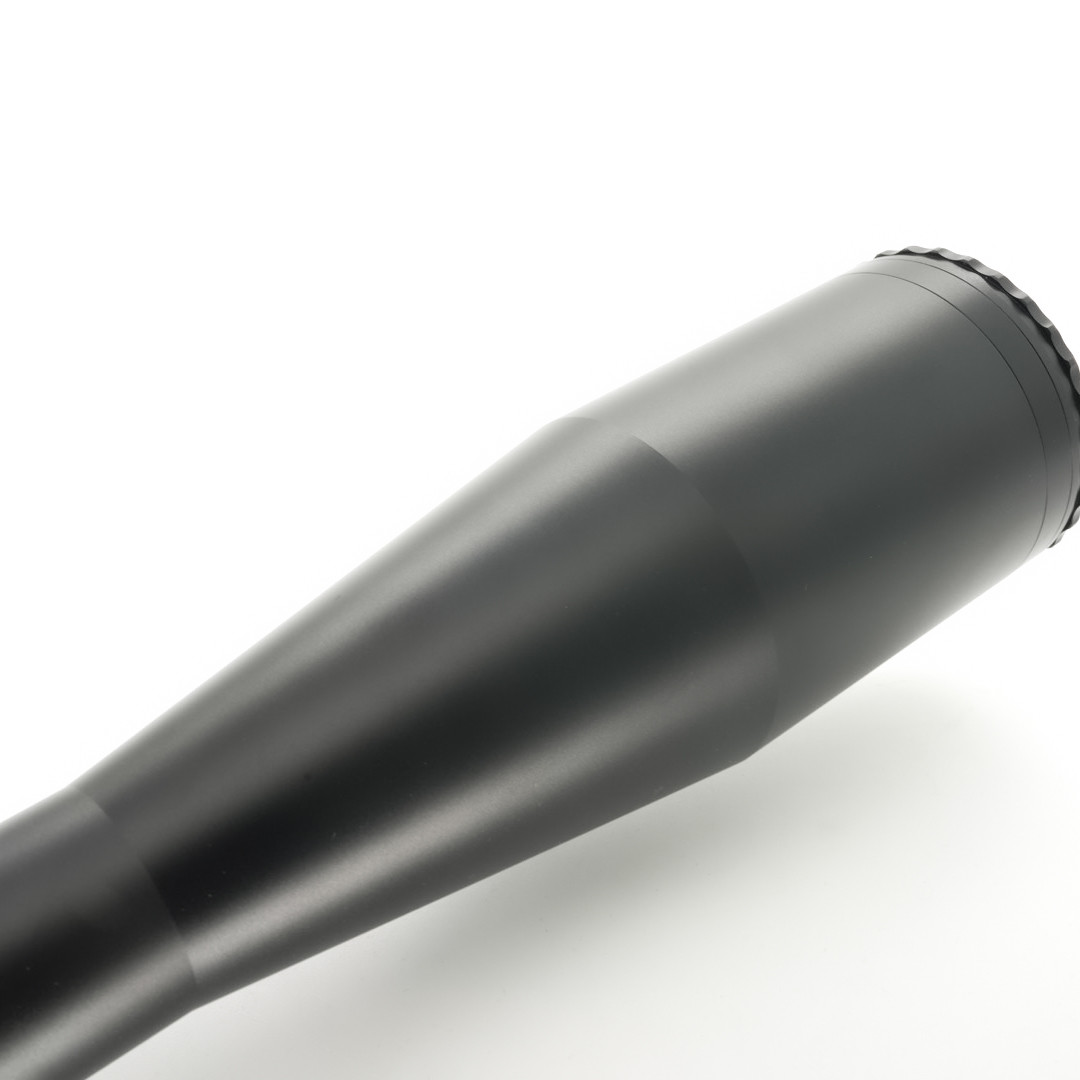

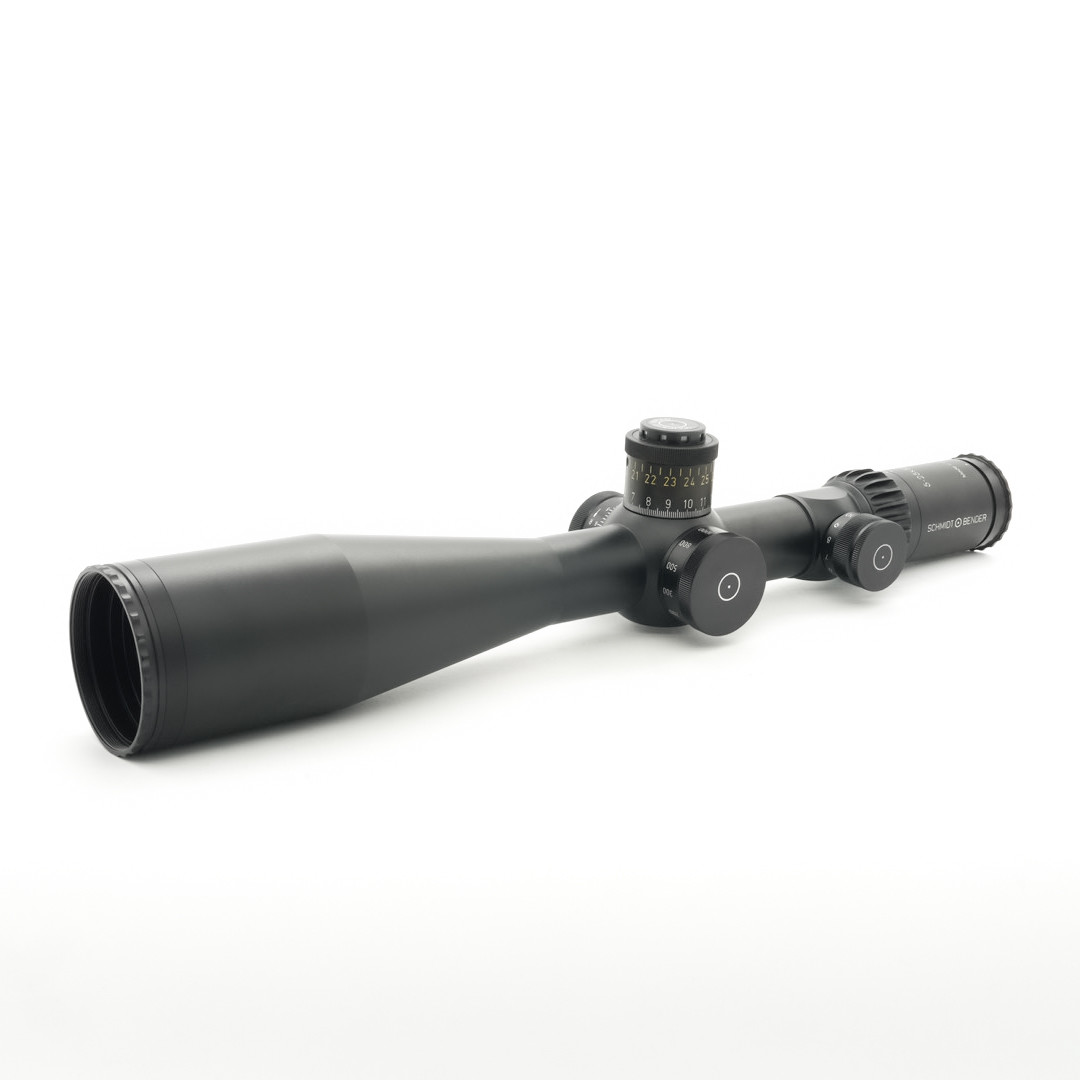

Pre-Owned Schmidt and Bender PM II 5-25x56 LP LRR-MIL 1cm cw DT / ST Rifle Scope - PO2397

Condition: Excellent

This unit is in excellent condition and has been very well cared for. Minor handling marks, such as light fingerprints, may be present. Please refer to product images for more details.

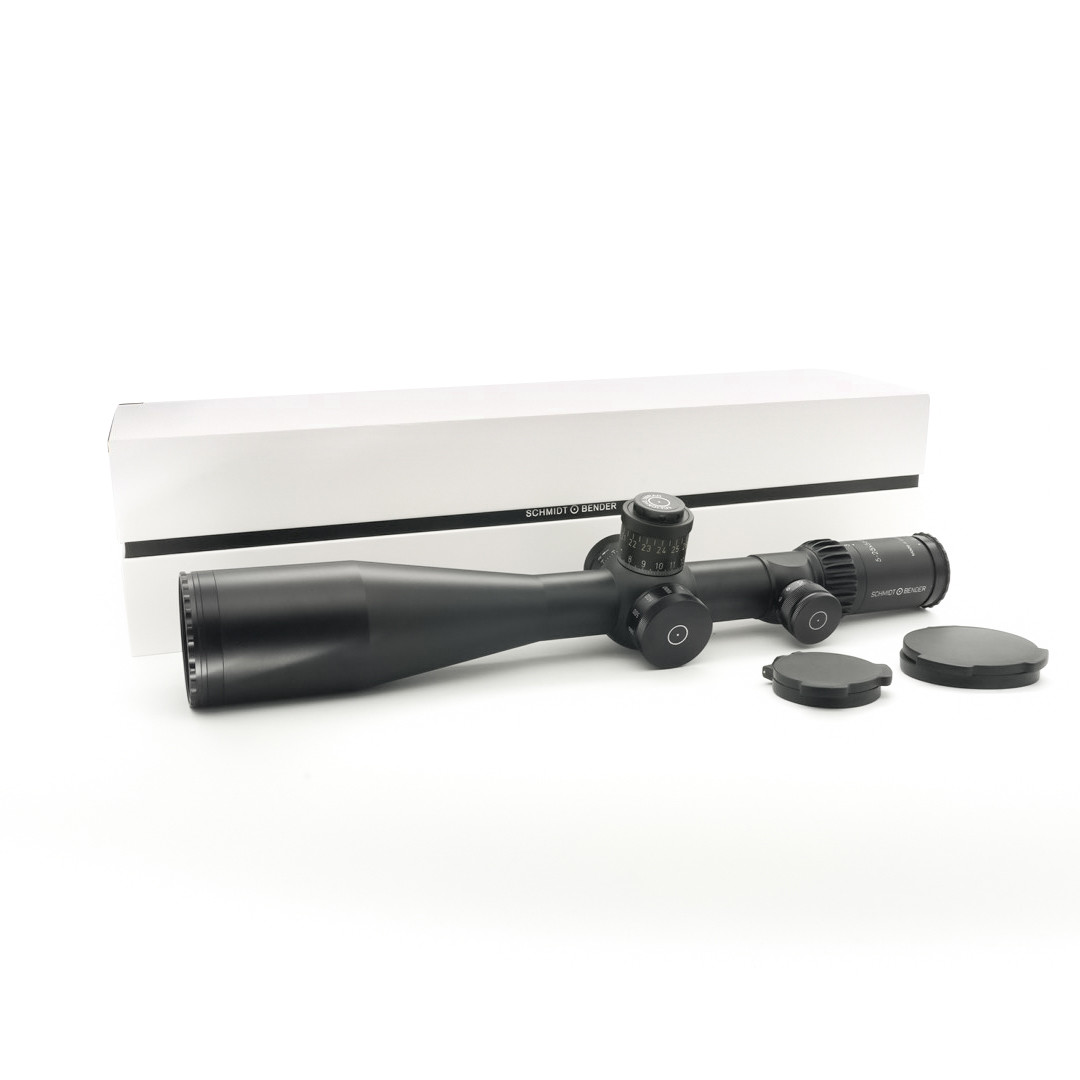

This product comes in its original box along with a lens cloth and objective & occular cover.

NO OTHER ACCESSORIES INCLUDED.

These products are sold in accordance with the VAT margin scheme for second-hand goods.

The PM II 5–25x56 LP LRR‑MIL 1 cm cw DT / ST rifle scope from Schmidt & Bender represents a benchmark in precision optical engineering for long‑range tactical and competitive shooting applications. Developed within the renowned Police / Military (PM II) product line, this optic is designed to deliver uncompromising optical clarity, mechanical repeatability, and environmental durability under demanding operational conditions.

Optical System

The scope features a variable magnification range of 5x to 25x, providing a wide performance envelope suitable for mid‑range engagements through extreme long‑distance precision shooting. At lower magnification, the optic offers a broad field of view for target acquisition and situational awareness. At higher magnification, it delivers the image resolution necessary for precise shot placement at extended distances.

A 56 mm objective lens maximizes light transmission and enhances low‑light performance. The large objective diameter improves brightness and contrast during dawn, dusk, or overcast conditions. The optical system incorporates precision‑ground lenses with advanced multi‑coatings engineered to achieve light transmission levels exceeding 90 percent, ensuring high contrast, accurate color rendition, and minimal chromatic aberration.

The exit pupil ranges from approximately 11 mm at 5x magnification to 2.3 mm at 25x magnification, balancing brightness and precision across the zoom range. The field of view measures approximately 5.3 meters to 1.5 meters at 100 meters, depending on magnification. Eye relief is maintained at approximately 90 mm, which supports safe operation on rifles with significant recoil while preserving a consistent sight picture.

A side parallax adjustment system allows precise correction from close distances, typically around 10 meters, to infinity. This ensures elimination of parallax error and optimal reticle focus at any engagement distance.

Reticle System

This configuration utilizes the LRR‑MIL reticle positioned in the first focal plane (FFP). Because the reticle scales proportionally with magnification, all subtensions remain accurate throughout the entire zoom range. This characteristic is essential for range estimation, holdover correction, and wind compensation using the mil‑radian system.

The LRR‑MIL reticle is calibrated in milliradians and is fully matched to the turret adjustment value of 0.1 mrad per click, which corresponds to 1 centimeter of adjustment at 100 meters. This alignment between reticle and turret units simplifies ballistic correction and reduces the potential for calculation errors in dynamic shooting environments.

Depending on configuration, the reticle may include adjustable illumination with multiple brightness settings to enhance visibility against dark or complex backgrounds without overwhelming the shooter’s night-adapted vision.

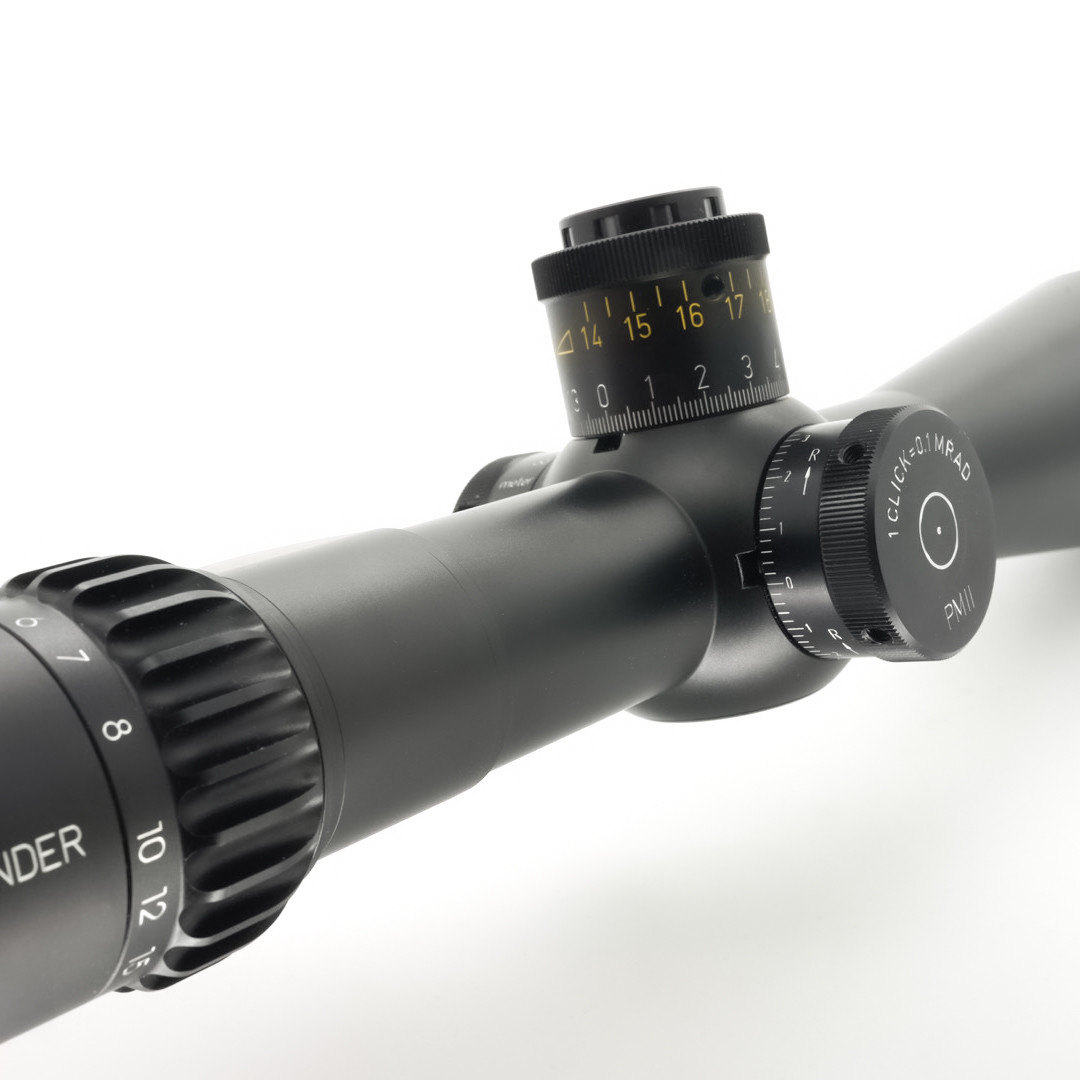

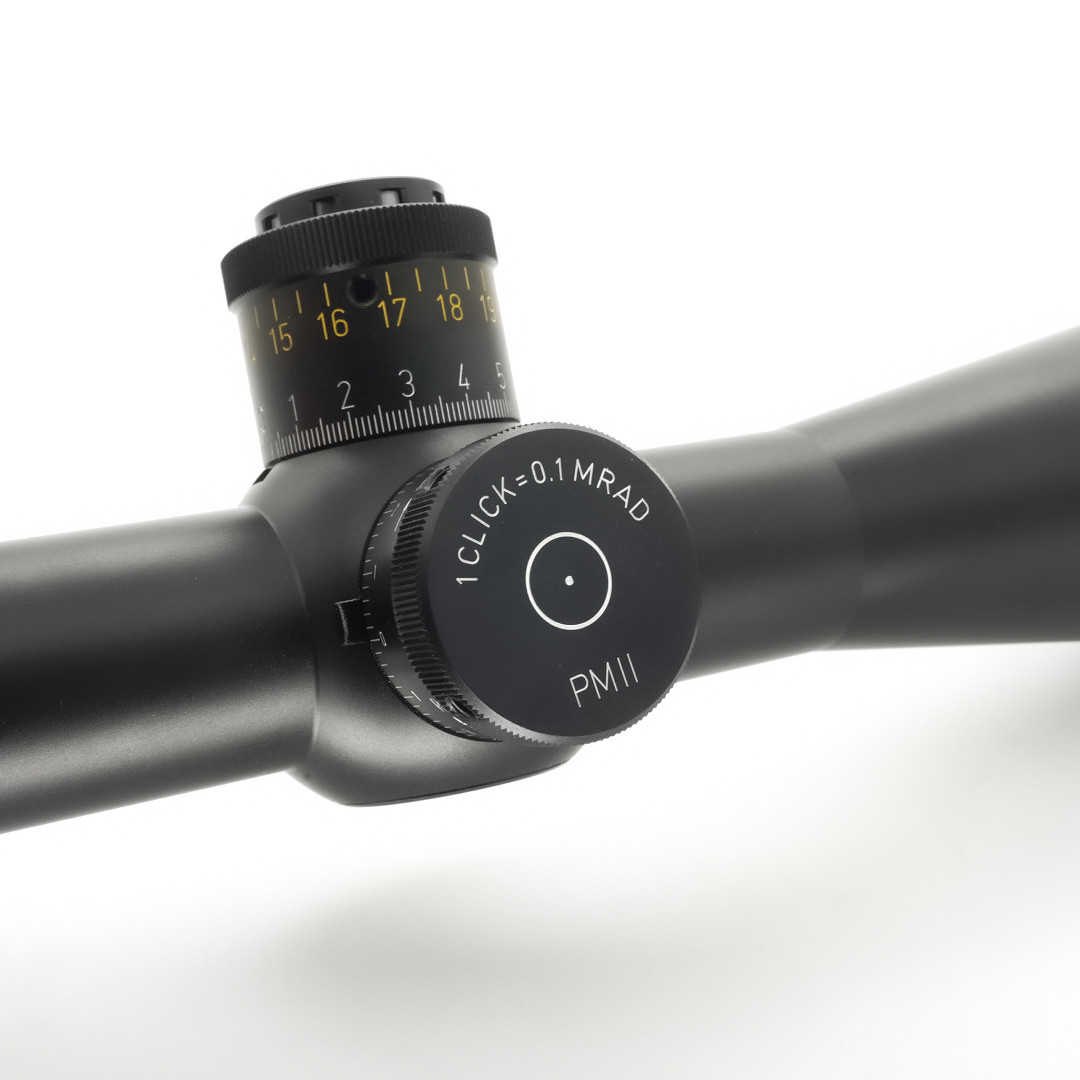

Turret and Adjustment Mechanism

The scope incorporates a Double Turn (DT) elevation turret combined with a Single Turn (ST) windage turret. The double‑turn elevation design provides extended vertical adjustment travel for extreme long‑range shooting while maintaining compact turret geometry. A clear tactile and visual indicator distinguishes between the first and second revolution to prevent over‑rotation errors.

The windage turret operates in a single turn configuration to promote rapid lateral corrections without excessive rotation. The turret is configured for clockwise (cw) adjustment, which aligns with certain military and professional user preferences.

Each click adjustment is precisely machined to deliver consistent 0.1 mrad increments with highly tactile and audible feedback. The turret system is engineered for repeatability and tracking accuracy, ensuring that adjustments return reliably to zero after repeated elevation cycles.

Mechanical Construction

The scope is built around a robust 34 mm main tube, which increases structural rigidity and allows for a broad internal adjustment range. The housing is machined from high‑strength aluminum and finished with a durable protective coating designed to resist abrasion and corrosion.

The optic is nitrogen‑purged and hermetically sealed to prevent internal fogging and moisture ingress. It is engineered to withstand harsh environmental conditions, significant recoil forces, and immersion in water without performance degradation.

The overall length is approximately 417–420 mm, and the weight is approximately 1,100–1,125 grams, depending on exact configuration. These dimensions reflect a balance between mechanical robustness and practical integration onto modern precision rifle platforms.

Operational Application

The PM II 5–25x56 LP LRR‑MIL 1 cm cw DT / ST rifle scope is designed for professional users who demand mechanical precision, optical excellence, and reliable performance in high‑stress environments. It is particularly well suited for long‑range tactical engagements, precision rifle competition, and advanced marksmanship applications where accurate ballistic compensation and repeatable adjustments are critical.

Its combination of first focal plane mil‑based reticle architecture, precise double‑turn elevation system, and high‑transmission optical assembly positions it among the most technically refined long‑range rifle scopes available in the premium optics category.

shorten
Schmidt & Bender PM II 5–25x56 LP LRR‑MIL 1 cm cw DT / ST Rifle Scope

The PM II 5–25x56 LP LRR‑MIL 1 cm cw DT / ST from Schmidt & Bender is a professional‑grade long‑range riflescope engineered for precision, repeatability, and durability in demanding environments.

Optical Performance

The scope offers a 5x to 25x magnification range, providing versatility from mid‑range engagements to extreme long‑distance shooting. Its 56 mm objective lens enhances light transmission and low‑light performance, delivering high contrast and sharp image resolution across the zoom range. The optical system features advanced multi‑coated lenses with light transmission exceeding 90 percent.

A consistent 90 mm eye relief supports safe use on higher‑recoil platforms. The side parallax adjustment allows precise correction from close distances to infinity, eliminating parallax error at varying engagement ranges.

Reticle and Adjustments

The optic features a first focal plane (FFP) LRR‑MIL reticle, ensuring accurate mil‑based subtensions at all magnifications. Turret adjustments are calibrated in 0.1 mrad increments, matching the reticle for simplified ballistic corrections.

The Double Turn (DT) elevation turret provides extended vertical adjustment for long‑range shooting, while the Single Turn (ST) windage turret enables rapid lateral corrections. The turrets adjust in a clockwise (cw) direction and deliver precise, tactile feedback for consistent tracking and reliable return to zero.

Construction

Built on a robust 34 mm main tube, the scope is machined from high‑strength aluminum and is nitrogen‑purged and sealed to prevent fogging and moisture intrusion. With an overall length of approximately 420 mm and a weight of around 1.1 kg, it balances durability with practical integration on modern precision rifle platforms.

The PM II 5–25x56 LP LRR‑MIL is designed for professional and competitive shooters who require mechanical precision, optical clarity, and dependable performance at extended distances.
