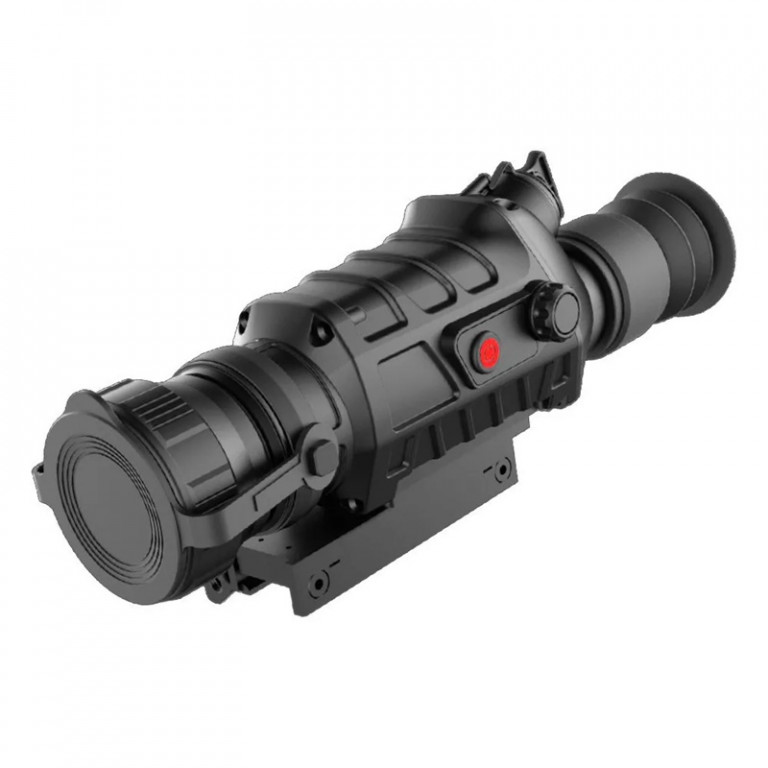

GuideIR TS450 Thermal Imaging Rifle Scope - 50mm, 400×300, 17μm, <50mK NETD
- 400×300 17µm <50mK NETD Sensor for sharp, high-contrast thermal detail
- Long-Range Detection up to 1,400m with 50mm focal length lens
- 1024×768 HD OLED Display with 50Hz refresh rate for smooth imaging
- Multiple Viewing Options with 7 colour palettes and Picture-in-Picture mode
- Rugged IP67 Housing with high shock resistance for all-weather use
- Intuitive Controls with simple button wheel interface for quick adjustments

The GuideIR TS450 Thermal Imaging Rifle Scope - 50mm delivers exceptional long-range thermal performance in a rugged, field-ready design. Built with a 400×300 17µm <50mK NETD thermal sensor and a 1024×768 HD OLED display, the TS450 provides smooth, high-definition thermal imaging with a fast 50Hz refresh rate. Designed for hunters and professionals alike, it combines advanced functions such as multiple colour palettes, Picture-in-Picture mode, and stadiametric rangefinding with a tough, shock-resistant housing and IP67 rating. Its intuitive controls, long battery life, and superior detection range make it the ultimate companion for demanding outdoor environments.
- Thermal Sensor 400×300 17µm <50mK NETD
- Frame Rate 50Hz
- Magnification 3.3–13.2x (4x Digital Zoom)
- Field of View 7.5°×5.6°
- Display 1024×768 HD OLED
- Detection Range 1,400m (man-size target)
- Colour Palettes 7
- Compensation Modes Auto, Shutter, Scene
- Battery Type Interchangeable lithium-ion (18650×1, non-rechargeable on device)
- Operation Time 3–5 hours
- Video Interface Lemo
- Operation Temperature -40℃ to +50℃
- Shock Resistance 500g/1ms
- Rated IP67
- Weight 720g
- Dimensions 250×90×75mm
- Superior Thermal Imaging – Powered by a 400×300 thermal sensor with 17µm pixel pitch and <50mK NETD sensitivity for precise detection of heat sources, even in low-contrast conditions.
- HD OLED Display – The 1024×768 display ensures crisp, clear visuals with smooth motion courtesy of its 50Hz refresh rate.
- Optimised for Long-Range – The 50mm focal length lens provides a detection range of up to 1,400m, making it ideal for long-distance observation and targeting.
- Versatile Colour Palettes – Choose from seven imaging modes, including White Hot, Black Hot, multiple Red Hot modes, Green Hot, and Blue Hot to adapt to changing environments.
- Picture-in-Picture Mode – Enables precise aiming by magnifying the central portion of the display while maintaining full situational awareness.
- Compensation Modes – Auto, shutter, and scene compensation settings help optimise image quality in varying conditions.
- Rugged Outdoor Design – Shock-resistant and IP67 rated for water and dust protection, with an operational temperature range from -40℃ to +50℃.
- Extended Use – Powered by an interchangeable lithium-ion battery pack for 3–5 hours of continuous operation in the field.
- User-Friendly Operation – Simple button wheel controls make menu navigation quick and intuitive.
- GuideIR TS450 Thermal Rifle Scope
- Lens cap
- Battery
- Charger
- Video cable
- Pick-up gun rack
- Hard carry case
- User manual
- GuideIR 2 Year Warranty
