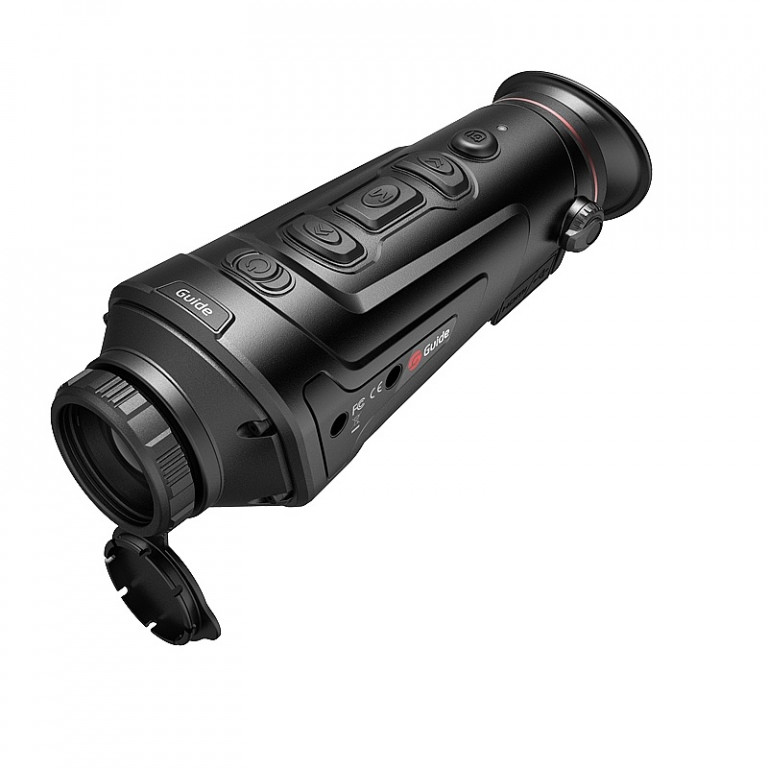

Ex-Demo Guide TrackIR 35mm 400x300 17um 50mk WIFI Thermal Imager Monocular
- 400x300 17µm <50mK thermal sensor with 50Hz refresh rate for sharp, detailed thermal imaging
- 35mm F1.2 lens with 2.3x optical magnification and up to 9.2x digital zoom for long-range spotting
- Detection range: 1000m for humans and 2400m for vehicles, ideal for hunting, security and surveillance
- Built-in stadiametric rangefinder, Picture-in-Picture mode and hotspot tracking for precise targeting
- Photo & video recording with 16GB internal memory plus Wi-Fi app for remote operation and sharing
- Rugged and reliable: >5h rechargeable battery life, IP66 waterproof rating, -10℃ to 50℃ operation and 1m drop tested
#866
#867
#864
#868
#865
PLEASE NOTE: The images for this product has been taken from the original listing and therefore may vary slightly for the pictures shown (eg; light or small scratches and scuffs)
Condition: Good
This product comes in its original box with the neoprene case, neck strap, USB cable and user manual.
NO OTHER ACCESSORIES INCLUDED.
The TrackIR Series of thermal imaging monocular features a 400x300 17µm <50mK NETD thermal sensor & image enhancement for performance imaging combined with a 50Hz refresh rate and a 1280x960 HD LCOS display resulting in a smooth & crisp viewing experience. The TrackIR 35 has a native magnification of 2.3x, with a digital zoom of 4x, resulting in a 9.2x total magnification which alongside the units long distance detection (Humans: 1000m, Vehicles: 2400m) makes this unit perfect as a thermal spotter.
Features a built-in stadiametric rangefinder for measuring the distance of known objects as well as Picture-in-Picture (PiP) mode which adds a zoomed-in display-box within the main viewfinder, this allows the user to hone-in on their subject whilst maintaining full awareness of the wider field of view.
The unit has an internal Li-Ion battery pack with an operating time of up to 5 hours and can be recharged via USB Cable.
The TrackIR Series can also connect to a smartphone via a dedicated App, this allows the unit to be operated remotely, share captured photos & videos as well as be live viewed
- Thermal Sensor 400x300 17µm <50mK NETD
- Spectral Range 8µm-14µm
- Detection Range 1000m (Human
- Magnification 2.3x-9.2x
- Digital Zoom 1x-4x (Smooth)
- Focus 35mm/F1.2 (Manual)
- Field of View 11.1°x8.3°
- Display 1280x960 (0.4") LCOS Colour
- Dioptre -4 to +2
- Frame Rate 50Hz
- Colour Palettes White-hot, black hot, iron red, blue hot, red hot
- Scene Modes Enhanced, Highlight, Natural
- Picture-in-Picture Mode Yes
- Power Internal Li-Ion (2x18650 6000mAh)
- Operating Time >5h
- Ports Micro-USB-C, Video Out
- Internal Memory 16GB
- Operating Temperature -10℃ to 50℃
- Protection IP66
- Drop Rating 1m
- Weight 485g
- Dimensions 192x65x71mm
- Photo & Video Capture
- Hotspot Tracking
- Stadiametric Rangefinder
- Wi-Fi/ App
- Compensation Modes: Auto comp./ shutter comp./ scene comp.
- Indicate Box: Red, yellow, green (coordinates of the indicator box are adjustable)
- Image Enhancement
- Brightness & contrast
- Auto power-off
- Auto sleep
- Super power-save mode
- Indicator off
Guide TrackIR 35mm 400x300 17um 50mk WIFI Thermal Imager Monocular
This product comes in its original box with the neoprene case, neck strap, USB cable and user manual.
NO OTHER ACCESSORIES INCLUDED.
- 1 Year Optics Warehouse Warranty
