Schmidt & Bender 3-20x50 PMII Ultra Short LP GRID 1cm DT II+ MTC LT/ST II ZC LT CCW Rifle Scope
- Versatile magnificiation range : 5-25x
- 56mm objective
- Top quality German Optics
- 34mm Main tube
- 27 MRAD of internal adjustment
- Illuminated
- The latest P5FL reticle
- Ultra flat Double Turn (DT27):
- Magnification Ring:
- Diopter Adjustment:
#198
#199
#201
#200
#202
The Schmidt & Bender 3-20x50 PMII Ultra Short LP GRID 1cm DT II+ MTC LT/ST II ZC LT CCW Rifle Scope, with its 34.5 cm length, is a significantly shortened version of the normal 3-20x50 PM II. It was developed for use with attachments on short rifles.
The ultra-compact elevation turret on the Schmidt & Bender 3-20x50 PMII Ultra Short LP GRID 1cm DT II+ MTC LT/ST II ZC LT CCW Rifle Scope is designed will provide 30.5 MRAD of adjustment thanks to the sophisticated DT II + turret system which features a window system at the base of the elevation and windage turrets aswell as a visual pop up indicator which is also able to be felt through gloves in tactical applications if the indicator cannot be seen due to darkness, this system allows the shooter to know whether they are on their first or second rotation.
Thanks to the precise parallax adjustment and a large field of view of 13 m per 100 m on 3x magnification with the Schmidt & Bender 3-20x50 PMII Ultra Short LP GRID 1cm DT II+ MTC LT/ST II ZC LT CCW Rifle Scope medium- and long-range targets can be easily identified and engaged.
The Schmidt & Bender 3-20x50 PMII Ultra Short LP GRID 1cm DT II+ MTC LT/ST II ZC LT CCW Rifle Scope has a turret that has an MTC setting and can be locked in place. The Windage turret has a cap to prevent unintentional adjustment.
cw = clock wise
ccw = counter clock wise
Dimensions in mm
|
Unit |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
|
mm |
94,87 |
30,03 |
51,08 |
47,23 |
116,88 |
57,00 |
34,00 |
24,80 |
24,80 |
23,00 |
49,97 |
340,00 |
22,38 |
- Weight (g): 903
- Length (mm): 340
- Tube diameter (mm): 34
- Magnification: 3-20x
- Objective lens diameter (mm): 50
- Field of view (m): 13.0 - 2.1
- Exit pupil (mm): 11.4 - 2.5
- Eye relief distance (mm): 90
- Twilight factor: 12.2 - 31.6
- Transmission: 90
- Focal plane: 1. & 2.
- Diopter: -3 to +2
- Parallax adjustment: 25 - ∞
- Illumination: 11 settings
- Adjustment: DT II+ MTC LT / ST II ZC LT
- Adjustment value / Click: 1 cm / ¼ MOA
- Elevation (Turret): 305 cm/100 m / 77 MOA
- Windage (Turret): ±60 cm/100 m / ±18 MOA
- Waterproof (mbar): 25 m
- Temperature range: Storage -55 to 70 °C Function -25 to 50 °C
- Turret Types: cw/ccw
- Colours: Black/RAL 8000/Pantone 7504 M

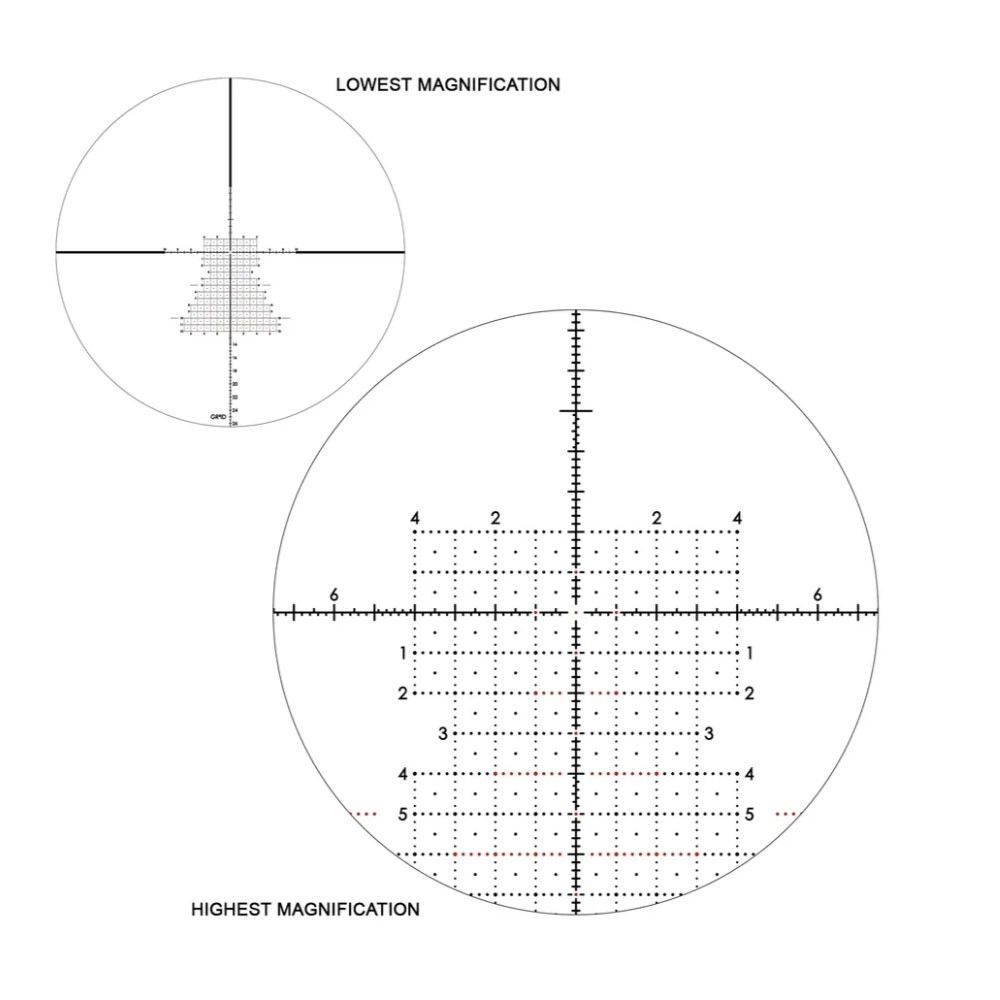

- Reticles: GRID FFP
- Versatile magnificiation range : 5-25x
- 56mm objective
- Top quality German Optics
- 34mm Main tube
- 27 MRAD of internal adjustment
- Illuminated
- The latest P5FL reticle
- Ultra flat Double Turn (DT27):
This scope perfectly supports the use of an additional red dot sight for close distances. Although being very compact, it maintains all essential features of a Double Turn turret such as a visual and tactile yellow-colored revolution indicator, locking function, MTC clicks and easy to read digits.
- Magnification Ring:
The new magnification ring is now fully rugged and is made out of solid aluminum. It has been further optimized and now features a magnification ring with deep grooves for a better grip which also allows to accommodate our Throw Lever.
- Diopter Adjustment:
In addition, the diopter has been redesigned in order to attach our military grade Polarization Filter Ocular via a thread. The ribbed structure of the diopter adjustment makes it suitable for the tactical Tenebraex Ocular Lens Cover.
- 3-20x50 PM II Ultra Short LP GR²ID 1cm ccw DT II+ MTC LT / ST II ZC LT
