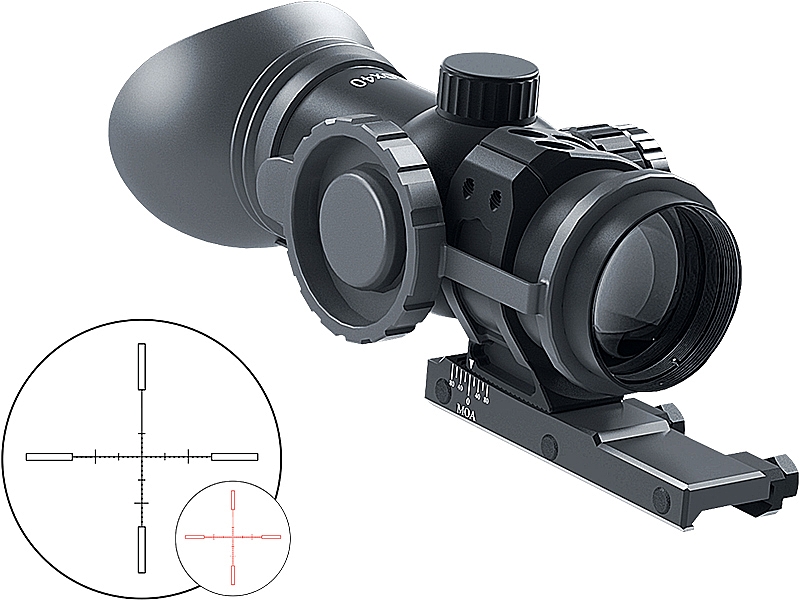

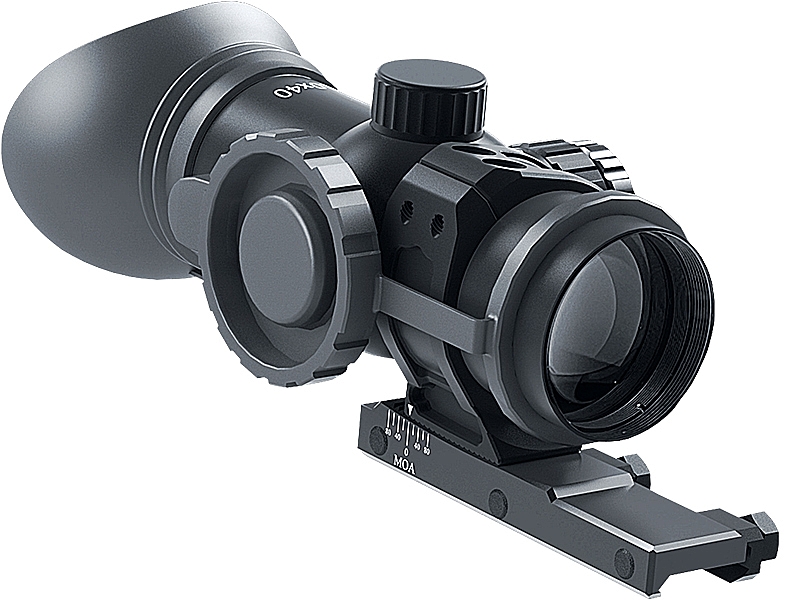

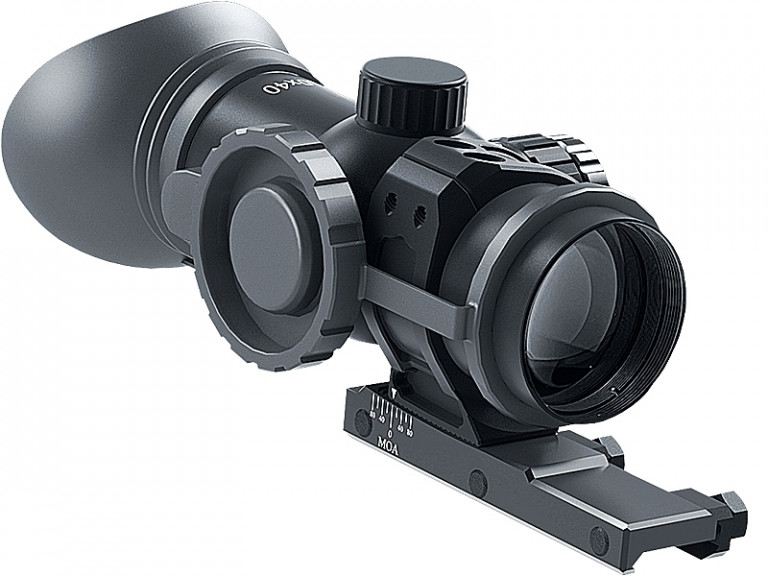

Immersive Optics 10x40 Mildot w/MOA ADJ MOUNTS Prism Rifle Scope

SKU#IMM-1040MD-M Immersive Optics

Immersive Optics 10x40 Mildot w/MOA ADJ MOUNTS Prism Rifle Scope

6 in stock

Prismatic design
Compact size
Lightweight
Short eye-relief
High magnification
Wider field of view (when compared to traditional sights)
ED glass for high clarity
Highly focusable
No parallax
Illuminated reticles
MOA adjustable mounts are available
Innovative eye-relief & lens cap retention system
Better gun/scope weight distribution
Reduced shooter fatigue
For rifles with moderate to no recoil
CNC machined precision mechanics
0.1 mill turrets to match mildot reticles
Adjustable elevation & windage (MIL 28 | MOA 83)
Precise rotations (MIL 5 | MOA 15) & revolutions (Clicks 50)
Nitrogen-Filled optical channel (Anti-Fogging)
Waterproof
Shock-Resistant (600G)
Powered by 1x CR2032 battery
3 Year Warranty

VIEW PRODUCT INFO / SPECS

Select Reticle: Mildot w/ MOA

Whilst we aim to dispatch in-stock items within 1 working day, please be aware that during busy periods dispatch of in-stock items may be delayed by up to 2 working days. Authorised UK Retailer

Have a price we can't refuse?

WHY BUY FROM US?

PRICE MATCH

SWAP-OUT GUARANTEE

FAST DELIVERY

30 DAY RETURNS

UNMATCHED SERVICE

OBSIDIAN REWARDS

The Immersive Optics 10x40 is a powerhouse of light management. The 40mm objective lens allows for a bright, vibrant image even in tricky lighting conditions, such as woodland hunting at dawn or dusk. By utilizing a prismatic design, it packs the performance of a full-sized 10x40 scope into a compact body that won’t throw off your rifle’s balance. Available with MOA Adjustable Extended Mounts, this scope ensures you can zero perfectly while enjoying an ultra-wide field of view that makes finding your target feel natural and instantaneous.

George, Sales and Support 10+ years' experience across air rifles, full-bore firearms, hunting and target shooting.

Product Information FIND OUT MORE

DESCRIPTION

The Immersive Optics 10x40 day scope offers high accuracy shooting within a highly compact format.

Using a prism-based optical system, the 10x40's size can be immediately reduced, eliminating a traditionally large objective lens and exceedingly long housing & eye-relief. This is done without sacrificing the scopes light-gathering performance, field of view or magnification.

The implementation of this new prismatic design not only allows the 10x40 to maintain a high optical output and a minimal size, but also a reduced bulk and weight, which results in a better balance for whichever shooting platform the scope is mounted on. This optimisation means that a shooter can aim for longer without fatiguing.

Offers up to 4x wider field of view when compared to traditional sights and can focus down to a distance of 6m for close-range shooting.

The 10x40 has a glass-etched illuminated mildot or mildot rapid reticle (see individual models), high precision windage & elevation controls (no parallax) and comes with an MOA adjustable mount.

This scope is fitted with ED (Extra-Low Dispersion) glass which helps to maintain natural colour reproduction within the observable field of view, minimising chromatic aberration (colour fringing), resulting in high clarity, picture-perfect results even at long distances.

All Immersive Optics day scopes feature an innovative eye-relief and lens cap retention system which allows these aspects to be quickly and easily held securely out of the way.

All Immersive Optics scopes have CNC machined housings for zero errors, with optical channels being nitrogen-filled for anti-fogging and sealed against water for maximum quality of use.

This optic can be used with rifles with moderate to no recoil, a great choice for airgun shooters.

Airguns and rimfire:

Scope rings - 1.5 nM

Mounts rail - 2.5 nm

Centerfire:

Scope rings - 3 nM

Mounts rail - 3.5 nM

SPECS

Model	Product Code	Magnification	F.O.V	Lens	Reticle	Weight	Dimensions
5x24 MILDOT w/MOA ADJ MOUNTS	IMM-524MD-M	5.0x	6.5°	24mm	Mildot	304g	130x53x72mm
5x24 MILDOT RAPID w/MOA ADJ MOUNTS	IMM-524MDR-M	5.0x	6.5°	24mm	Mildot Rapid	304g	130x53x72mm
5x30 MILDOT w/MOA ADJ MOUNTS	IMM-530MD-M	5.0x	6.9°	30mm	Mildot	336g	130x53x72mm
5x30 MILDOT RAPID w/MOA ADJ MOUNTS	IMM-530MDR-M	5.0x	6.9°	30mm	Mildot Rapid	336g	130x53x72mm
10x24 MILDOT w/MOA ADJ MOUNTS	IMM-1024MD-M	10.0x	6.0°	24mm	Mildot	248g	122x51x72mm
10x24 MILDOT EXTENDED w/MOA ADJ MOUNTS	IMM-1024MDE-M	10.0x	6.0°	24mm	Mildot Extended	248g	122x51x72mm
10x40 MILDOT w/MOA ADJ MOUNTS	IMM-1040MD-M	10.0x	6.5°	40mm	Mildot	TBC	135x60x80mm
10x40 MILDOT EXTENDED w/MOA ADJ MOUNTS	IMM-1040MDE-M	10.0x	6.5°	40mm	Mildot Extended	TBC	135x60x80mm
14x50 MILDOT w/MOA ADJ MOUNTS	IMM-1450MD-M	14.0x	5.5°	50mm	Mildot	TBC	154x64x80mm
14x50 MILDOT EXTENDED w/MOA ADJ MOUNTS	IMM-1450MDE-M	14.0x	5.5°	50mm	Mildot Extended	TBC	154x64x80mm

FEATURES

Prismatic design
Compact size
Lightweight
Short eye-relief
High magnification
Wider field of view (when compared to traditional sights)
ED glass for high clarity
Highly focusable
No parallax
Illuminated reticles
MOA adjustable mounts are available
Innovative eye-relief & lens cap retention system
Better gun/scope weight distribution
Reduced shooter fatigue
For rifles with moderate to no recoil
CNC machined precision mechanics
0.1 mill turrets to match mildot reticles
Adjustable elevation & windage (MIL 28 | MOA 83)
Precise rotations (MIL 5 | MOA 15) & revolutions (Clicks 50)
Nitrogen-Filled optical channel (Anti-Fogging)
Waterproof
Shock-Resistant (600G)
Powered by 1x CR2032 battery
3 Year Warranty

RETICLE

Mildot Reticle

VIDEOS

WHAT'S IN THE BOX

Immersive Optics 10x40 Mildot w/MOA ADJ MOUNTS Prism Rifle Scope

FREQUENTLY ASKED QUESTION(S)

1. What makes Immersive Optics prismatic scopes different from traditional rifle scopes?

Traditional rifle scopes use a series of lenses to transmit light, which results in a long, heavy tube. Immersive Optics uses a prism-based optical system, which allows the scope to be significantly shorter and lighter. The primary advantage is an "immersive" viewing experience—the image appears to surround your eye rather than looking through a distant tube—and a field of view that can be up to 4x wider than a conventional optic at the same magnification.

2. Why do Immersive Optics scopes have such short eye relief?

The short eye relief (often between 15mm and 45mm) is a deliberate design choice to maximize the Field of View (FOV). By placing your eye closer to the ocular lens, you get a much larger picture of the landscape, which is critical for rapid target acquisition. Because of this "zero eye relief" design, these scopes are specifically optimized for low-recoil rifles like airguns (PCP and springers) and rimfire rifles (like .22 LR).

3. Are Immersive Optics scopes suitable for high-recoil centerfire rifles?

Generally, no. Because the eye relief is very short, the recoil of a high-power centerfire rifle could cause the scope to strike the shooter's eye (often called "scope eye"). However, the Immersive Optics 5x30 Pro model offers an extended 85mm eye relief, making it a safer and highly effective option for medium-recoil calibers like .223 or .243 Win.

4. Can I use Immersive Optics for close-range pest control and HFT?

Yes, they are ideal for these applications. One of the standout features of Immersive Optics is their short minimum focus distance (as low as 6 meters). This makes them perfect for Hunter Field Target (HFT) and close-range pest control where traditional scopes often struggle to maintain a sharp focus. The wide FOV also helps you keep moving targets in sight more easily in dense environments.

5. Do Immersive Optics scopes come with mounts included?

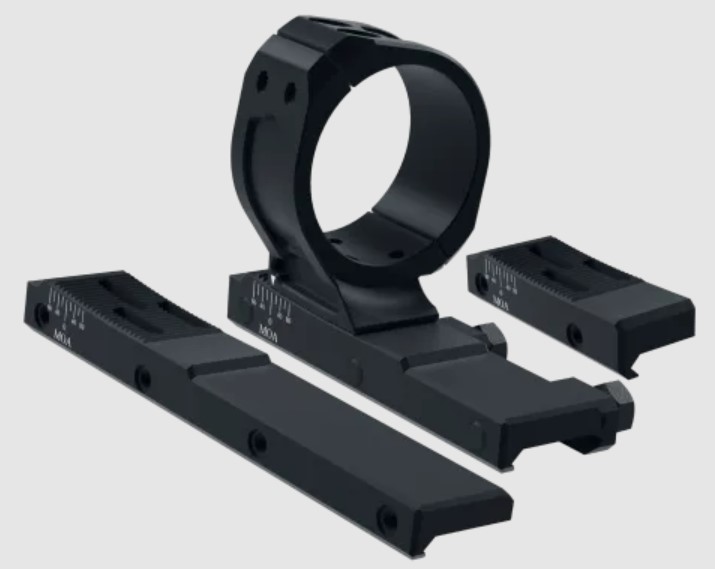

Yes, most Immersive Optics models come as a complete package including MOA adjustable mounts. Since prismatic scopes sit lower than traditional optics, these dedicated mounts are designed to provide the correct height and alignment for your rail. The inclusion of multiple base options (often including both Picatinny and sometimes Dovetail adapters) ensures you can fit the scope to your rifle straight out of the box.
