The Ultimate Guide: How to Correctly Mount, Align, and Zero a Thermal Front Clip-On
In our previous article, we explored whether a next-generation thermal front add-on, like the HIKMICRO Thunder 3.0 or NocPix MATE, is the ultimate hybrid setup for UK night hunting. It gives you the best of both worlds: a handheld spotter for safe, 360-degree scanning, and a clip-on attachment that turns your favourite daytime glass into a thermal weapon scope.
However, the number one anxiety keeping shooters from pulling the trigger on a clip-on is always the same: "Will it actually hold its zero, or am I going to miss a fox because it’s misaligned?"
Let’s dispel the myth right now. Modern front clip-ons do not shift your point of impact, if you setup and calibrate them correctly. Unlike a traditional scope where you dial physical turrets, zeroing a front clip-on is a simple software configuration.
Here is our step-by-step technical guide to perfectly mounting, aligning, and zeroing your thermal clip-on for rock-solid precision in the dark.

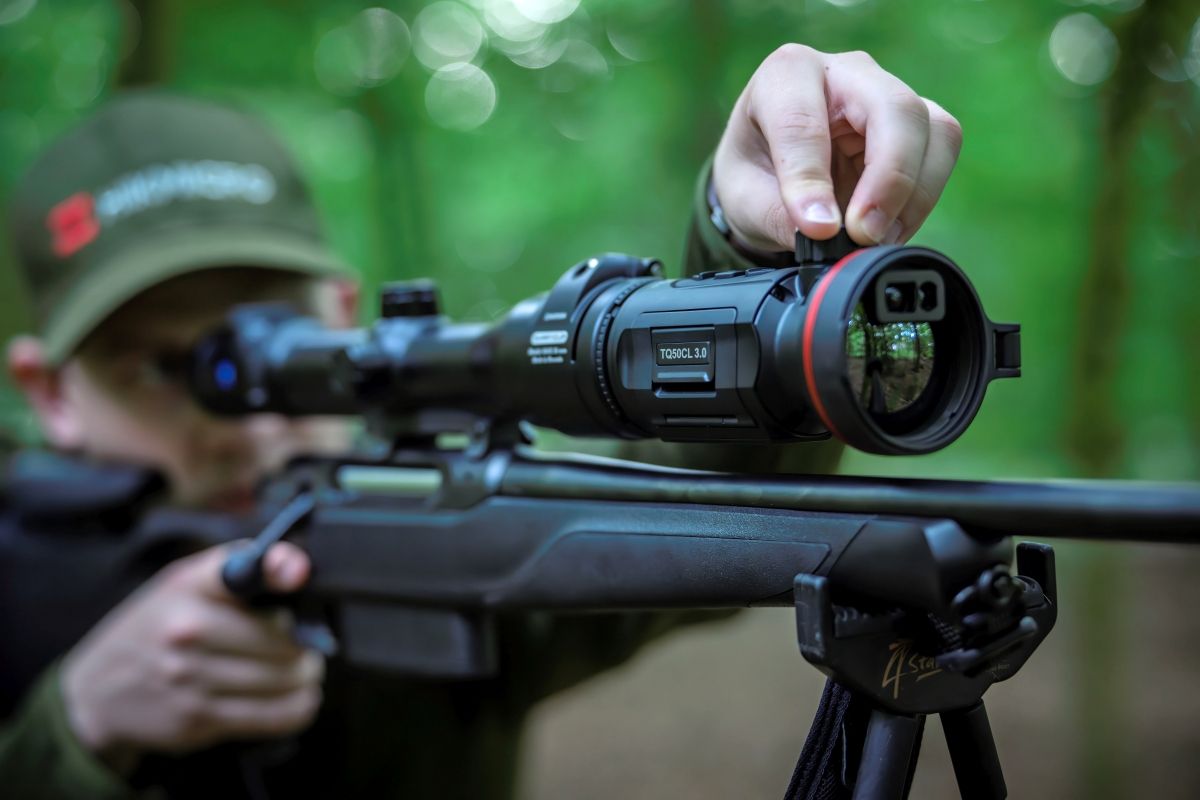

Step 1: Precision Mounting (The Foundation)
A flawless digital zero means nothing if your device physically slips under the recoil of a .223 or .243. Your zero is entirely dependent on a high-quality collar system, such as a Rusan or Smart Clip adapter.
- Measure with Calipers: Never guess your scope size based on the manufacturer’s model name. A "56mm scope" refers to the glass lens size, but the outer metal casing (the objective bell) might measure 62mm or 64mm. Use a digital caliper to get the exact outside diameter to the nearest millimeter.

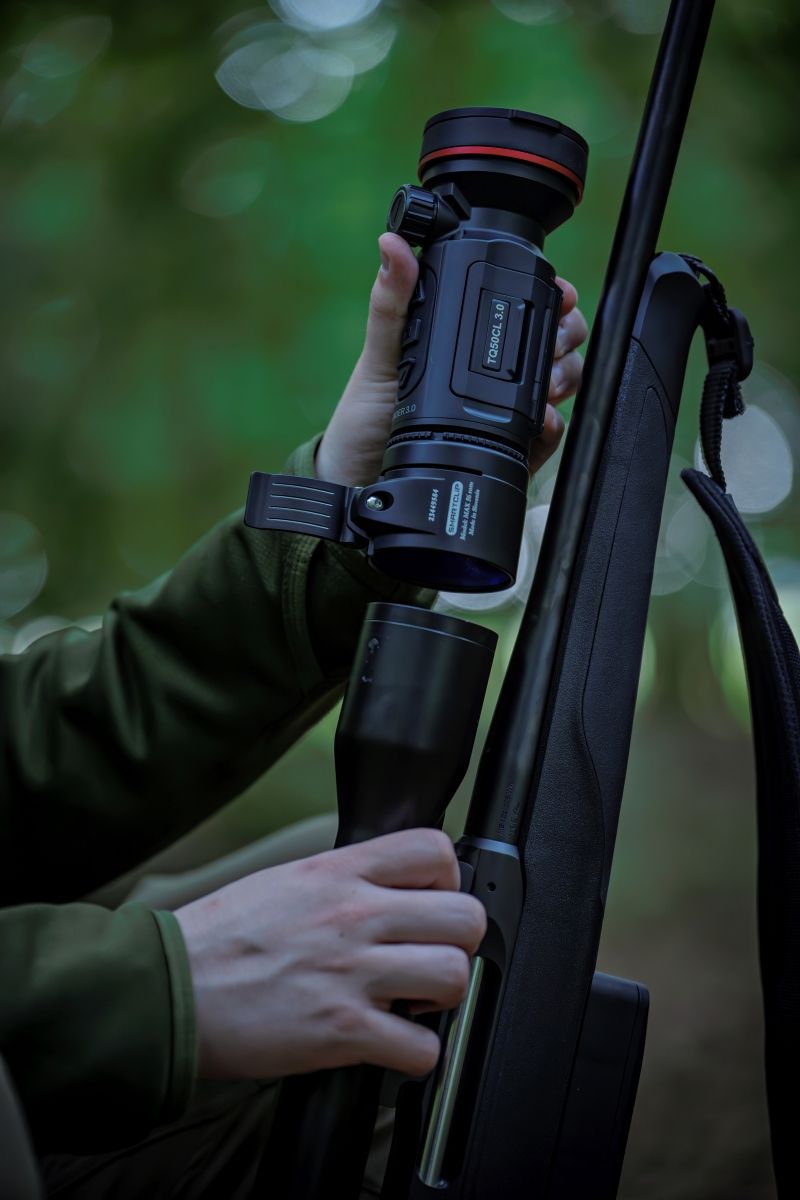

- Degrease the Surface: Before slipping the adapter onto your day scope, wipe down the outer objective bell and the inside of the adapter rubber lining with a bit of isopropyl alcohol. Removing oil, grease, or dirt prevents the unit from rotating or sliding forward during recoil.
- Set the Clamp Tension: Slip the adapter on and close the locking lever. It should require firm pressure to close, but you shouldn't have to force it. If it moves when you gently twist the thermal unit, open the lever, tighten the adapter's tension screw by a fraction of a turn, and lock it again.
Step 2: Build a High-Contrast Thermal Target
You cannot zero a thermal optic using a standard paper target or a sharpie drawing, the camera sensor only sees heat differentials, meaning a flat paper bullseye will look completely blank.
Instead, build a dedicated thermal target using one of these reliable methods:
● The Tin Foil Cross: Cut a small, 2-inch square of household aluminum foil and tape it to a cardboard box. Tilt the box slightly backward (about 5 to 10 degrees) so the foil reflects the cold temperature of the open sky. On "White Hot" mode, the foil will stand out as a stark, crisp, pitch-black square.
● The Disposable Handwarmer: Activate a standard charcoal handwarmer pouch and pin it to the center of your target board. This provides a glowing, highly visible heat signature out to 100 yards.
Step 3: Mechanical "Eyeball" Alignment
Before you load a round or look at the software menu, you need to ensure the clip-on is physically sitting straight on your rifle.
Mount the clip-on to your day scope, get behind the rifle, and look through the glass. Set your day scope’s magnification to its lowest setting (usually 1x to 3x).
What to look for: You should see the circular or rectangular border of the thermal’s internal micro-display screen centered perfectly within your day scope’s field of view.
If the screen looks tilted, crooked, or offset like a crescent moon, open the collar lever, rotate or adjust the physical unit until it is perfectly squared up, and clamp it back down.
Step 4: The Digital Zeroing Workflow
Here is the most critical concept to understand: Your day scope is already zeroed. Do not touch your day scope's windage or elevation turrets. When you "zero" a front clip-on, you are simply using the thermal's software to move its internal screen image until it aligns perfectly with where your day scope's physical crosshairs are already pointing.
The Step-by-Step Procedure:
1.Set up at the range: 50 or 100 yards.
Secure your rifle in a rock-solid shooting rest, bipod, or lead sled. Set your day scope magnification to a low, native power so you can see the entire thermal interface clearly.
2.Fire your baseline shot: 1 to 3 rounds.
Aim your day scope's physical reticle dead-center at your thermal target and fire a shot. Note exactly where the bullet impacted relative to your crosshairs.
3.Activate the Zeroing Menu:
Open the device menu and navigate to the Zeroing or Calibration profile. Most modern units like the HIKMICRO Thunder 3.0 and NocPix MATE will feature a "Freeze Frame" option. Press it; this takes a static digital snapshot of the target scene so you don't have to hold the gun perfectly still.
4.Shift the screen coordinates: Aligning X and Y.
Keep your day scope's physical crosshairs pinned exactly on your original point of aim (the center of the target). Use the clip-on's directional buttons to move the digital calibration reticle over to where the actual bullet hole is on the screen.
5.Save and confirm: Fire a confirmation round.
Save the coordinate adjustments to your profile. Take a live confirmation shot. Your physical day scope crosshairs and the bullet hole should now match up perfectly.
Pro-Tips for Field Success
● Write Down Your Coordinates: Once your zero is confirmed, go into the menu and take a photo or write down your numeric X and Y coordinate values in your phone notes. If you ever update the firmware on your NocPix MATE or HIKMICRO Thunder, the device might reset to factory settings. Having those numbers written down means you can re-enter them manually and re-zero your rig in 10 seconds without firing a single live round.
● Beware of High Magnification: When zeroing, keep your day scope's zoom low. If you zoom in too far initially, you may lose track of where the digital calibration crosshair is moving on the screen.
● The Multi-Rifle Advantage: Because clip-ons use digital profiles, you can save different coordinate sets for different guns. You can save "Profile A" for your .22LR rimfire, and "Profile B" for your .223 foxing rifle. Just make sure you clamp the device on straight every time!
Summary Checklist
Before heading out into the dark, ensure your setup passes the three rules of clip-on accuracy:
The scope bell is completely degreased and clean.
The adapter collar requires firm pressure to lock and has zero structural twist.
Your digital X and Y coordinates are saved and backed up on your phone.
With a quality adapter ring and a basic understanding of your device's software calibration, a thermal clip-on will deliver the exact same repeatable, precise accuracy as a dedicated scope, with a massive boost in versatility.
